Concealed Cistern
Achieve a clutter-free and modern bathroom look with our advanced Concealed Cisterns. Designed to be hidden behind the wall or within a frame, these cisterns offer a sleek appearance without compromising on performance or durability.
- Space-saving design for a clean and minimalist finish
- Suitable for wall-hung and back-to-wall water closets
- Dual flush technology for water conservation
- Made from high-strength, corrosion-resistant materials
- Noise-free operation and easy maintenance access
- Ideal for residential, commercial, and premium washrooms
Concealed cisterns are a preferred choice for modern bathrooms, offering unmatched aesthetics with robust utility. Their concealed nature reduces visible fixtures, enhances hygiene, and simplifies cleaning.
Flush Type: Dual Flush (3L/6L or 4L/8L)
Installation: In-wall / Behind-Wall Frame System
Compatible Closets: Wall-Hung, Floor-Mounted (Back-to-Wall)

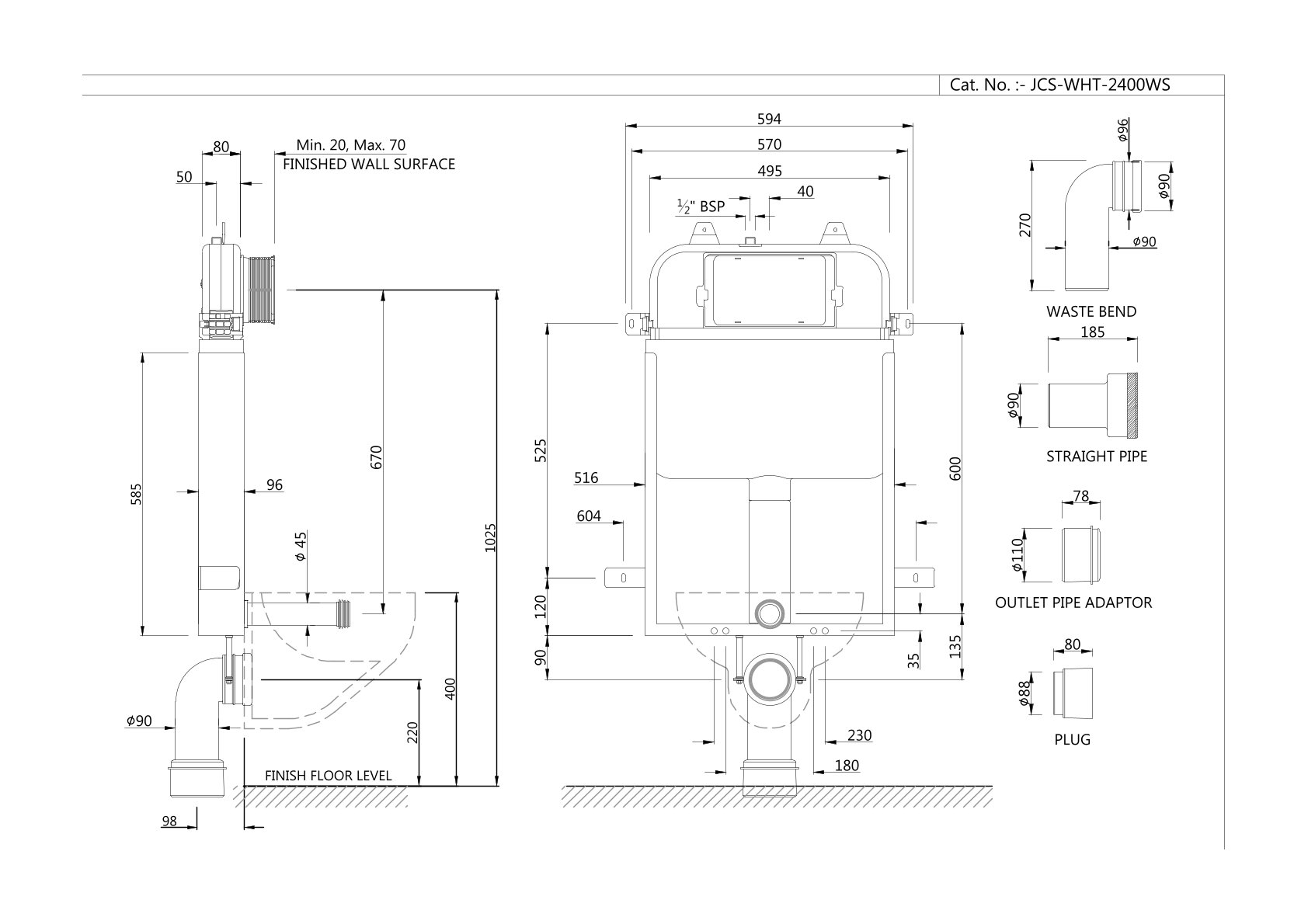

Product Specifications
Product Code:
JCS-WHT-2400WS
JCS-WHT-2400WS
Description:Single Piece Slim Concealed Cistern with Wall Mounting Frame, Installation Kit and
“S-Type” Drain Pipe Connection Set for Wall Hung WC
(Without Flush Control Plate)
“S-Type” Drain Pipe Connection Set for Wall Hung WC
(Without Flush Control Plate)
Flow Rate:
3.0 / 6.0 LPF
3.0 / 6.0 LPF
Features
- Tank Body: Strong 80 mm thick High-density polyethylene (HDPE) single-piece body.
- Anti-Condensation Lining: 6 mm thick anti-condensation lining to handle temperature changes.
- Inlet & Outlet Valves: Low-noise rotary inlet valve with anti-siphon function. Both valves are WARS approved.
- Working Pressure: 0.3 – 10 bar (Recommended: 1.0 – 3.0 bar with clear, non-aggressive water supply).
- Life Cycles of Mechanism: Successfully passed 100,000 cycles in sea water and dirty water tests.
- Flush Control Plates: ABS chrome-plated flush control plates compatible with Single Piece Slim In-wall Cistern (JCS-WHT-2400WS).
- Wall Mounted Frame: Oxford blue powder-coated steel frame.
- Water Inlet: ½” water supply connection from top.
- Flush Volume: Factory setting 6.0 / 3.0 litres; Eco adjustable 4.0 / 2.0 litres (only for WC pans designed for low-volume flushing).
Application
- For installation of wall-hung WC with bolt fixing at 180 mm or 230 mm centres.
- Solid pre-wall installation system for brick and solid walls.
- Suitable for installation in load-bearing stud walls.
- Not suitable for installation in drywall.
Disclaimer:Every effort has been made to ensure factual accuracy. Information may be subject
to changes due to site, market, or country-specific requirements. A variation of up
to 10% in flow rate may occur. Jaquar reserves the right to make amendments at any
time without prior notice.
to changes due to site, market, or country-specific requirements. A variation of up
to 10% in flow rate may occur. Jaquar reserves the right to make amendments at any
time without prior notice.
