Name: Single Piece Slim Concealed Cistern with Floor Mounting Frame
Brand: Jaquar
SKU: JCS-WHT-2400FS
Availability: InStock

Description

Concealed Cistern

Achieve a clutter-free and modern bathroom look with our advanced Concealed Cisterns. Designed to be hidden behind the wall or within a frame, these cisterns offer a sleek appearance without compromising on performance or durability.

Space-saving design for a clean and minimalist finish
Suitable for wall-hung and back-to-wall water closets
Dual flush technology for water conservation
Made from high-strength, corrosion-resistant materials
Noise-free operation and easy maintenance access
Ideal for residential, commercial, and premium washrooms

Concealed cisterns are a preferred choice for modern bathrooms, offering unmatched aesthetics with robust utility. Their concealed nature reduces visible fixtures, enhances hygiene, and simplifies cleaning.

Flush Type: Dual Flush (3L/6L or 4L/8L)
Installation: In-wall / Behind-Wall Frame System
Compatible Closets: Wall-Hung, Floor-Mounted (Back-to-Wall)

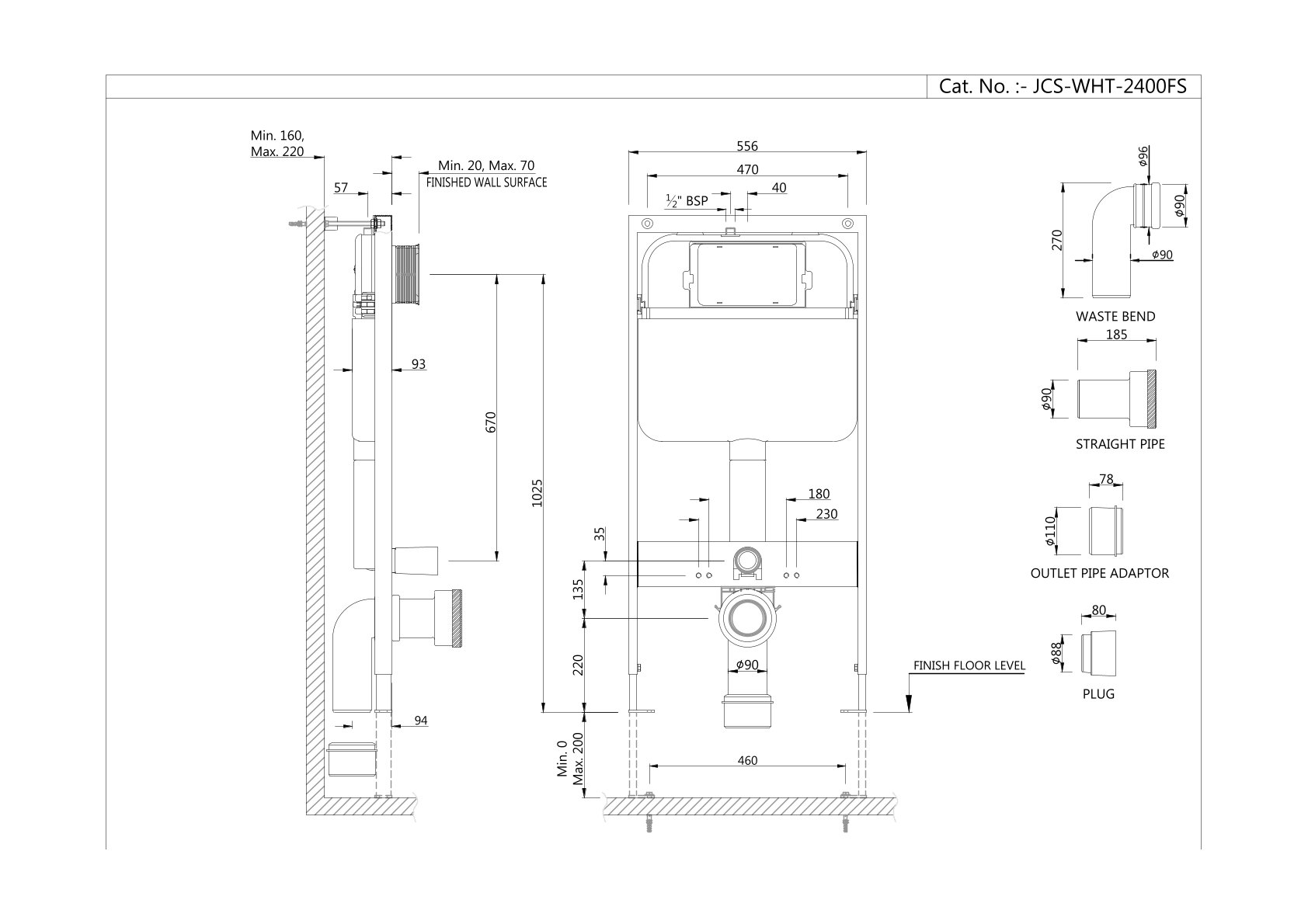

Product Specifications

Product Code:
JCS-WHT-2400FS

Description:

Single Piece Slim Concealed Cistern with Floor Mounting Frame, Installation Kit and
“SType” Drain Pipe Connection Set for Wall Hung WC
(Without Flush Control Plate)

Flow Rate:
3.0 / 6.0 LPF

Features

Tank Body: Strong 80 mm thick High-density polyethylene (HDPE) single-piece body.
Anti-Condensation Lining: 6 mm thick anti-condensation lining to manage temperature changes.
Inlet & Outlet Valves: Low-noise rotary inlet valve with anti-siphon function. Both inlet and outlet valves are WARS approved.
Working Pressure: 0.3 – 10 bar (Recommended: 1.0 – 3.0 bar with clear, non-aggressive water supply).
Life Cycles of Mechanism: Passed 100,000 cycles in sea water and dirty water tests.
Flush Control Plates: ABS chrome-plated flush control plates compatible with Single Piece Slim In-wall Cistern (JCS-WHT-2400FS).
Adjustable Height: Adjustable legs (0 – 200 mm) to accommodate varying WC installation heights.
Floor Mounted Frame: Oxford blue powder-coated steel frame with self-supporting structure tested for 400 kg load-bearing capacity.
Water Inlet: ½” water supply connection from top.
Flush Volume: Factory setting 6.0 / 3.0 litres; Eco adjustable 4.0 / 2.0 litres (only for WC pans designed for low-volume flushing).

Application

For installation of wall-hung WC with bolt fixing at 180 mm or 230 mm centres.
For installation in a room-high system well in front of solid or drywall construction.
Suitable for installation in load-bearing stud walls.
