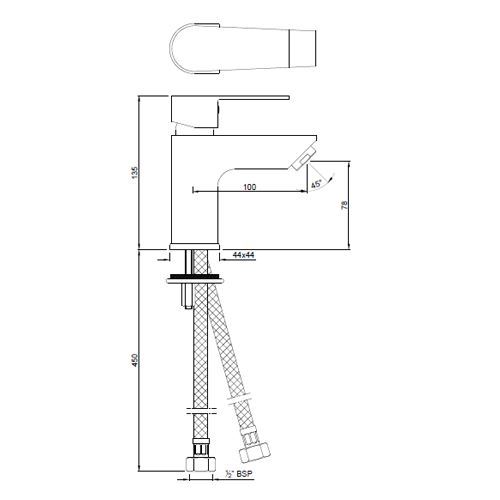

Single Lever Basin Mixer

Product Code: ARI-CHR-39001B

Description

Single Lever Basin Mixer without Popup Waste with 450mm Long Braided Hoses

Connection Size

Braided hoses, 1/2″ FIP (WRAS Approved)

Withstand Pressure

10 Bar

Flow Rate

15.02 LPM @ 3 bar

Flow Regulator

By using flow regulators (Product should be ordered with suffix as G-2.5 LPM,
GA-6.0 LPM, GB-8.0 LPM, GD-3.8 LPM & GE-1.3 LPM @ 3.0 Bar pressure)
one can regulate the flow rate.

Recommended Water Pressure

0.5 Bar – 5 Bar

Brass Specification in Percentage

• Brass Ingots as per IS:1264-1997: Cu (58.0-63.0), Sn (0.0-1.0), Pb (0.5-2.5), Ni (0.0-1.0), Al (0.2-0.8), Mn (0.0-0.5), Total Impurity (0.0-2.0), Zn (Remainder)
• Brass Rod as per IS:319-1989: Cu (56.0-59.0), Pb (2.0-3.5), Fe (0.0-0.35), Total Impurity (0.0-0.7), Zn (Remainder)
• Brass Sheets as per IS:410-1977: Cu (61.5-64.5), Pb (0.0-0.3), Fe (0.0-0.075), Total Impurity (0.0-0.6), Zn (Remainder)

Cartridge Specification

• Cartridge with Temperature Limiter
• Cartridge with Brass Spindle
• Life Cycle EN 817: 70,000 cycles (Standard) – 2.1 LAC Cycles as per EN 817* – 10.5 LAC Cycles (ON/OFF)*
• Water Tightness: 16 bar (Pass)
• Pressure Resistance: 25 bar (Pass)

Finish

• Plating: Nickel-10.0 micron Chromium-0.3 micron
• Salt Spray (500 hrs + Validated)
• Adhesion (Pass)

Aerator

Size: WRAS, ACS Approved (M20X1)

Available Colour Finishing

CHROME (CHR)

* As per in-house testing done on automatic life cycle testing machine made by Giussani, Italy

DISCLAIMER: Our every effort has been made to ensure factual accuracy, the information presented subject to changes
due to requirements in different sites, markets and/ or countries. 10% variation in flow rate may be possible.
Jaquar reserves the right to make the necessary amendments at any time without prior notice.
