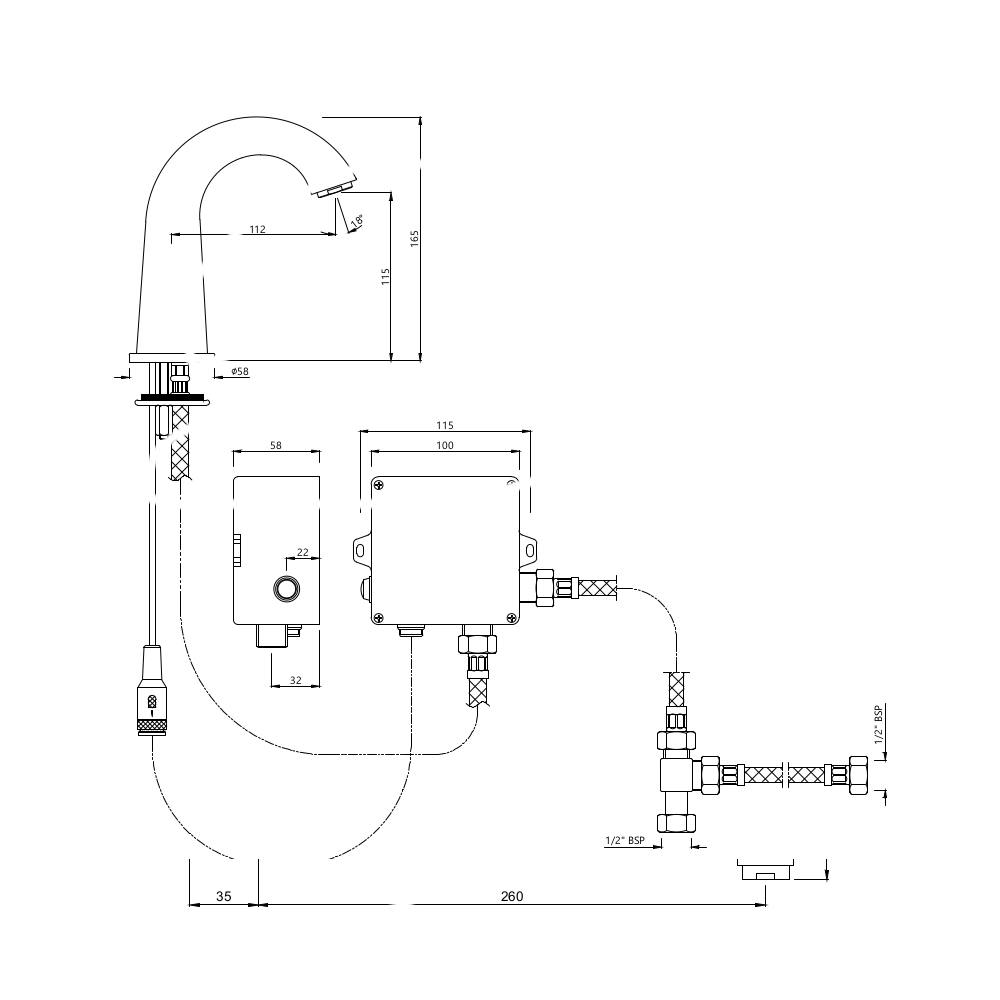

Sensor Faucet for Wash Basin – Chrome

Product Code

SNR-CHR-51011N

Description

Sensor Faucet for Wash Basin (Battery Operated)

Water Supply: Cold and hot water (2 inlets)

Water Temperature: Maximum 65 ℃

Inlet Water Connection: 1/2” BSP / 15mm

Recommended Water Pressure: 1.0 Bar – 5.0 Bar

Flow Rate: 12.30 LPM @ 3 bar

Flow Regulator: By using flow regulators (Product should be ordered with suffix as G-2.5 LPM, GA-6.0 LPM, GB-8.0 LPM, GD-3.8 LPM & GE-1.3 LPM @ 3.0 Bar pressure) one can regulate the flow rate.

Material Composition

Brass Ingots as per IS:1264-1997

Cu: 58.0 – 63.0,
Sn: 0.0 – 1.0,
Pb: 0.5 – 2.5,
Ni: 0.0 – 1.0,
Al: 0.2 – 0.8,
Mn: 0.0 – 0.5,
Total Impurity: 0.0 – 2.0,
Zn: Remainder

Brass Rod as per IS:319-1989

Cu: 56.0 – 59.0,
Pb: 2.0 – 3.5,
Fe: 0.0 – 0.35,
Total Impurity: 0.0 – 0.7,
Zn: Remainder

Solenoid Valve Specification

Operating Pressure: 1.0 – 5.0 bar

Nominal Voltage: 6 Volt DC

Low Power Consumption: Bi-stable pulse controlled

IP Rating (Control Box): IP 65

IP Rating (Sensor Eye): IP 67

Electronic Parameter Setting

Procedure: Red button on Control Box

Adjustable Parameters: Detection Range: 100 – 300MM, default: 140-150MM

Power Source: 6 Volt Battery – Duracell (4 *1.5V AA cell)

Finish

Plating: Nickel – 10.0 micron, Chromium – 0.3 micron

Salt Spray: 500 hrs + Validated

Adhesion: Pass

Aerator Size: WRAS, ACS Approved (M24X1)

Available Colour Finishing

Antique Bronze (ABR), Antique Copper (ACR), Black Chrome (BCH), Black Matt (BLM), Graphite (GRF) & Stainless Steel (SSF)

Disclaimer

Our every effort has been made to ensure factual accuracy; the information presented is subject to changes due to requirements in different sites, markets and/or countries. 10% variation in flow rate may be possible. Jaquar reserves the right to make the necessary amendments at any time without prior notice.
