Description
Product Code
ALD-CHR-089
Description

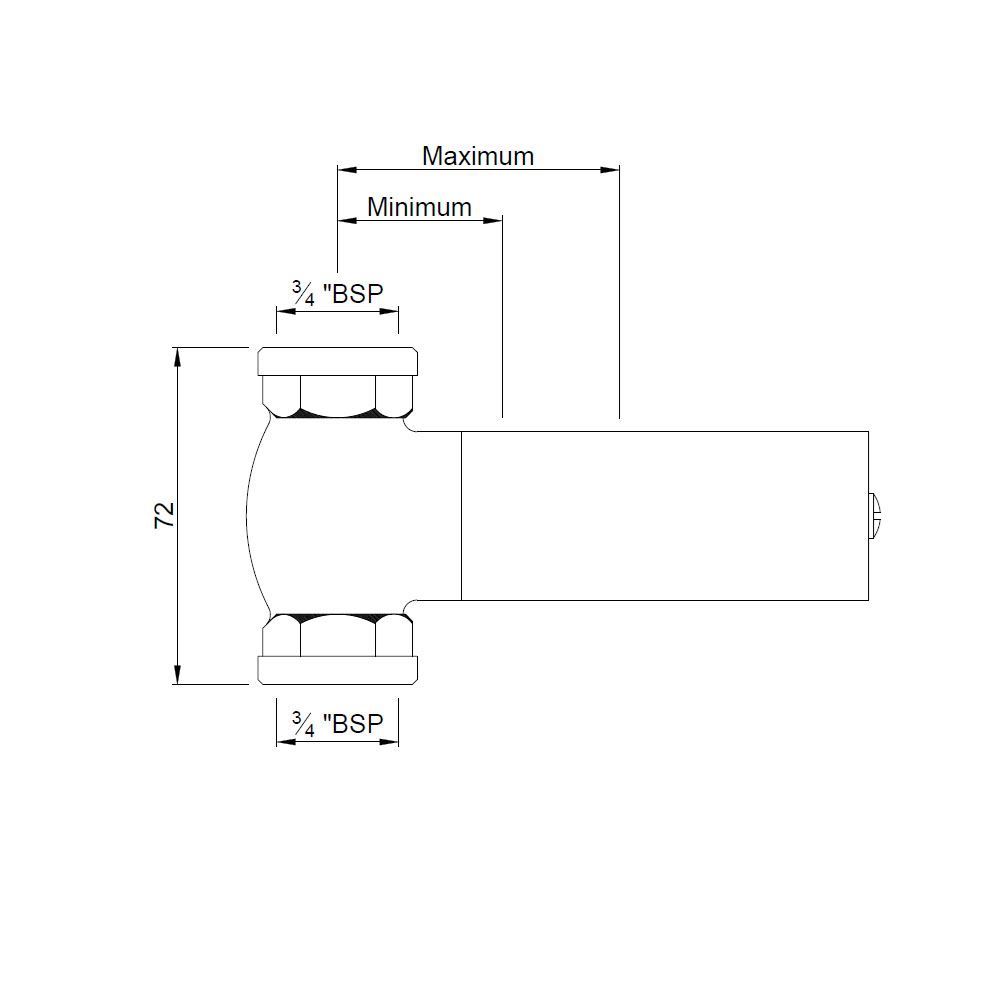

Regular Body of Concealed Stop Cock Suitable For 20 mm Pipe Line with Protection Cap (without Exposed Parts)
Flow Rate: 69.65 LPM @ 3 bar
Recommended Water Pressure: 0.5 Bar – 5 Bar
Material Composition
Brass Ingots as per IS:1264-1997
Cu: 58.0 – 63.0,
Sn: 0.0 – 1.0,
Pb: 0.5 – 2.5,
Ni: 0.0 – 1.0,
Al: 0.2 – 0.8,
Mn: 0.0 – 0.5,
Total Impurity: 0.0 – 2.0,
Zn: Remainder
Brass Rod as per IS:319-1989
Cu: 56.0 – 59.0,
Pb: 2.0 – 3.5,
Fe: 0.0 – 0.35,
Total Impurity: 0.0 – 0.7,
Zn: Remainder
Cartridge Specification
Fittings: Components have WRAS Approved for food grade conformity with Brass Housing and Spindle
Life Cycle: EN 200: 200,000 cycles (Standard) – 5.0 LAC Cycles as per EN 200*
Water Tightness: 16 bar (Pass)
Pressure Resistance: 25 bar (Pass)
Available Colour Finishing
CHROME (CHR)
Disclaimer
Our every effort has been made to ensure factual accuracy; the information presented is subject to changes due to requirements in different sites, markets and/or countries. 10% variation in flow rate may be possible. Jaquar reserves the right to make the necessary amendments at any time without prior notice.
