Description
Product Code

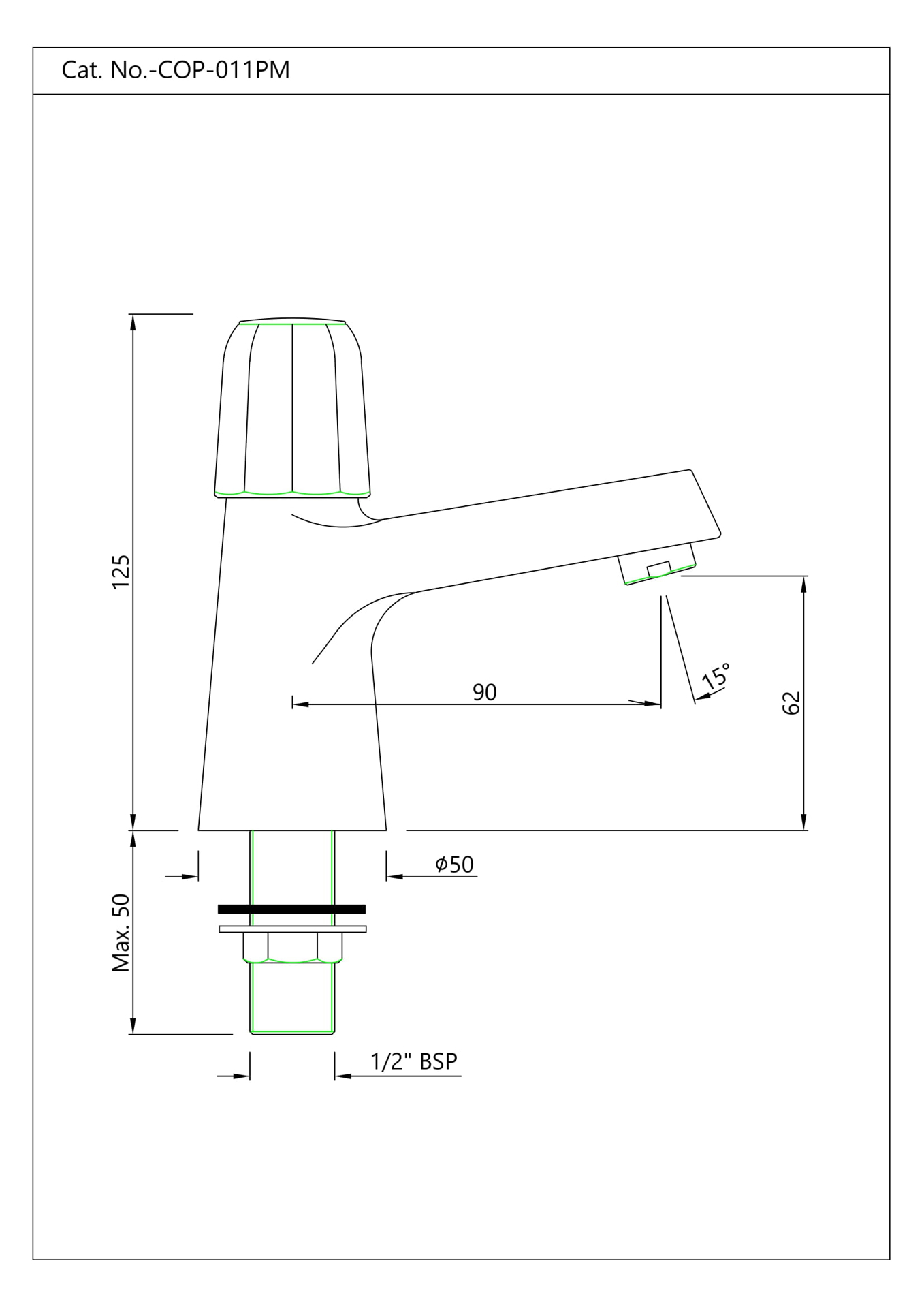

COP-CHR-011PM
Description
Pillar Cock
Flow Rate: 14.94 LPM @ 3 bar
Flow Regulator: By using flow regulators (Product should be ordered with suffix as
G-2.5 LPM, GA-6.0 LPM, GB-8.0 LPM, GD-3.8 LPM & GE-1.3 LPM @ 3.0 Bar pressure) one can regulate the flow rate.
Recommended Water Pressure: 0.5 Bar – 5 Bar
Material Composition
Brass Ingots as per IS:1264-1997
Cu: 58.0 – 63.0,
Sn: 0.0 – 1.0,
Pb: 0.5 – 2.5,
Ni: 0.0 – 1.0,
Al: 0.2 – 0.8,
Mn: 0.0 – 0.5,
Total Impurity: 0.0 – 2.0,
Zn: Remainder
Brass Rod as per IS:319-1989
Cu: 56.0 – 59.0,
Pb: 2.0 – 3.5,
Fe: 0.0 – 0.35,
Total Impurity: 0.0 – 0.7,
Zn: Remainder
ABS
Specific Gravity (g/cm2): 1.06 – 1.10,
Melt Mass Flow Rate (g/10 min.): 20 – 26,
Rockwell Hardness: 95 – 115,
DTUL @ 66 psi (0.45 MPa) (0°C): 78 – 102
Cartridge Specification
Life Cycle: EN 200: 200,000 cycles (Standard) – 5.0 LAC Cycles as per EN 200*
Water Tightness: 16 bar (Pass)
Pressure Resistance: 25 bar (Pass)
Finish
Plating: Nickel – 10.0 micron, Chromium – 0.3 micron
Salt Spray: 500 hrs + (Validated)
Adhesion: Pass
Aerator Size: WRAS, ACS Approved (M18X1)
Available Colour Finishing
CHROME (CHR)
Disclaimer
Our every effort has been made to ensure factual accuracy; the information presented is subject to changes due to requirements in different sites, markets and/or countries. 10% variation in flow rate may be possible. Jaquar reserves the right to make the necessary amendments at any time without prior notice.
