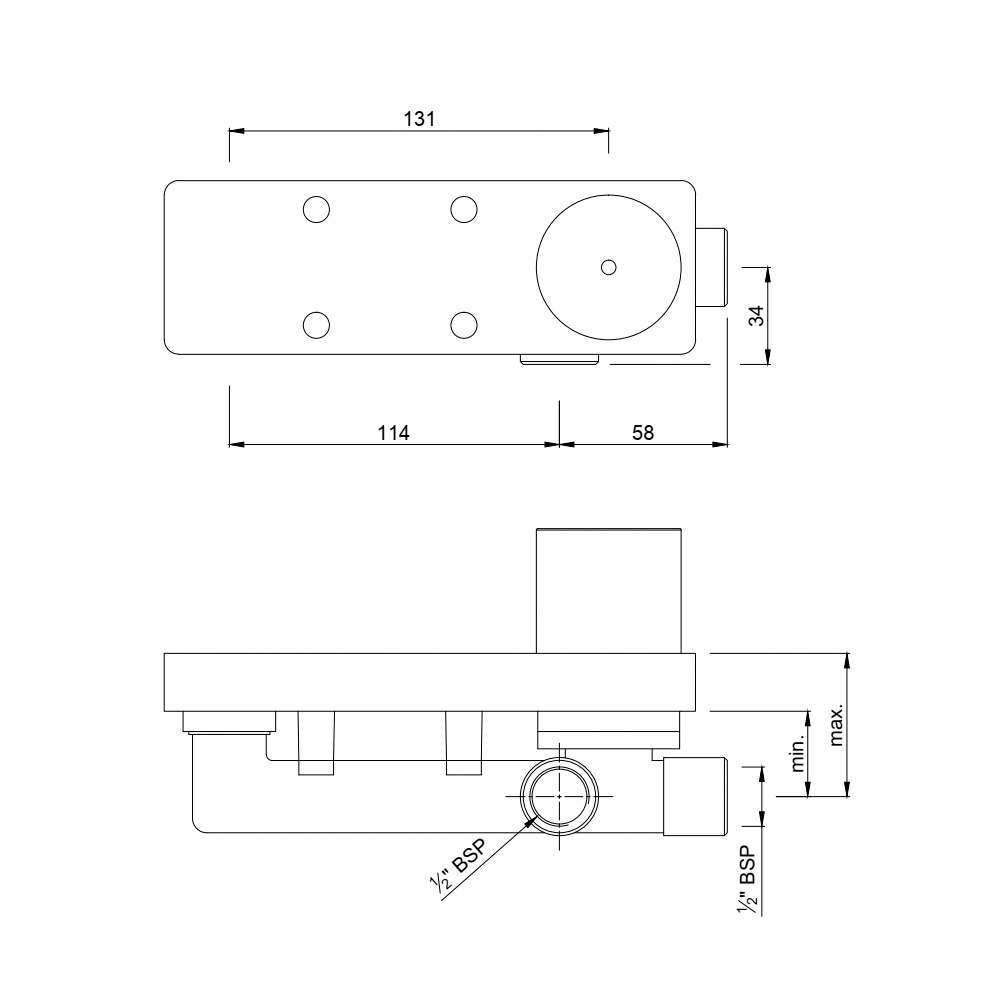

Concealed Body for Single Lever Basin Mixer Wall Mounted

Product Code

ALD-CHR-233N

Description

Concealed Body for Single Lever Basin Mixer Wall Mounted, But without Exposed Parts

Performance

Flow Rate: 32.00 LPM @ 3 bar

Recommended Water Pressure: 0.5 Bar – 5 Bar

Brass Specification in Percentage

Brass Ingots as per IS:1264-1997

Cu: 58.0 – 63.0,
Sn: 0.0 – 1.0,
Pb: 0.5 – 2.5,
Ni: 0.0 – 1.0,
Al: 0.2 – 0.8,
Mn: 0.0 – 0.5,
Total Impurity: 0.0 – 2.0,
Zn: Remainder

Cartridge Specification

• Cartridge with Temperature Limiter
• Cartridge with Brass Spindle
• Life Cycle EN 817: 70,000 cycles (Standard)
• 2.1 LAC Cycles as per EN 817*
• 10.5 LAC Cycles (ON/OFF)*

Test Results

Water Tightness: 16 bar (Pass)

Pressure Resistance: 25 bar (Pass)

Available Colour Finishing

CHROME (CHR)

* As per in-house testing done on automatic life cycle testing machine made by Giussani, Italy.

Disclaimer

Our every effort has been made to ensure factual accuracy; the information presented is subject to changes due to requirements in different sites, markets and/or countries. 10% variation in flow rate may be possible. Jaquar reserves the right to make the necessary amendments at any time without prior notice.
