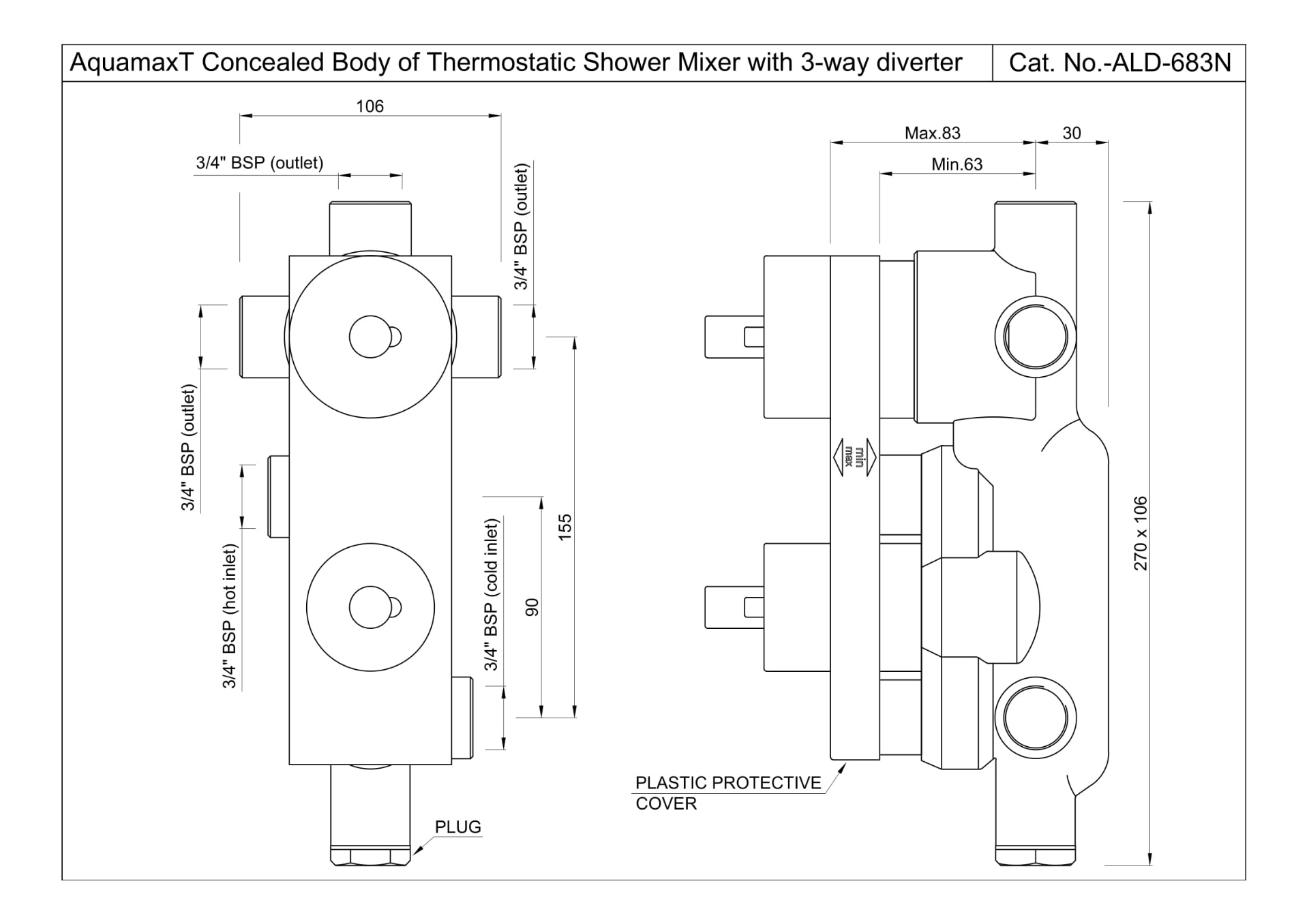

Aquamax Concealed Body of Thermostatic Shower Mixer

Product Code

ALD-CHR-683N

Description

Aquamax Concealed Body of Thermostatic Shower Mixer with 3-way diverter, But without Exposed Parts

Performance

Flow Rate: 52.00 LPM @ 3 bar

Recommended Water Pressure: 0.2 Bar – 5 Bar

Brass Specification in Percentage

Brass Ingots as per IS:1264-1997

Cu: 58.0 – 63.0,
Sn: 0.0 – 1.0,
Pb: 0.5 – 2.5,
Ni: 0.0 – 1.0,
Al: 0.2 – 0.8,
Mn: 0.0 – 0.5,
Total Impurity: 0.0 – 2.0,
Zn: Remainder

Brass Rod as per IS:319-1989

Cu: 56.0 – 59.0,
Pb: 2.0 – 3.5,
Fe: 0.0 – 0.35,
Total Impurity: 0.0 – 0.7,
Zn: Remainder

Specification

• Cartridges made of high performance thermostatic polymer materials that meet global standards for high and low pressure.
• High-technology thermoplastic polymer minimises lime-scale build up.
• Standard temperature range: 15°C to 60°C (59°F – 104°F).
• Shower mixer contains ceramic cartridge to divert water into three outlets (3-way diverter).
• Protected against backflow.

Test Results

Water Tightness: 16 bar (Pass)

Pressure Resistance: 25 bar (Pass)

Available Colour Finishing

CHROME (CHR)

* As per in-house testing done on automatic life cycle testing machine made by Giussani, Italy.

Disclaimer

Our every effort has been made to ensure factual accuracy; the information presented is subject to changes due to requirements in different sites, markets and/or countries. 10% variation in flow rate may be possible. Jaquar reserves the right to make the necessary amendments at any time without prior notice.
