Description
Product Code: KUP-CHR-35053PM
Description

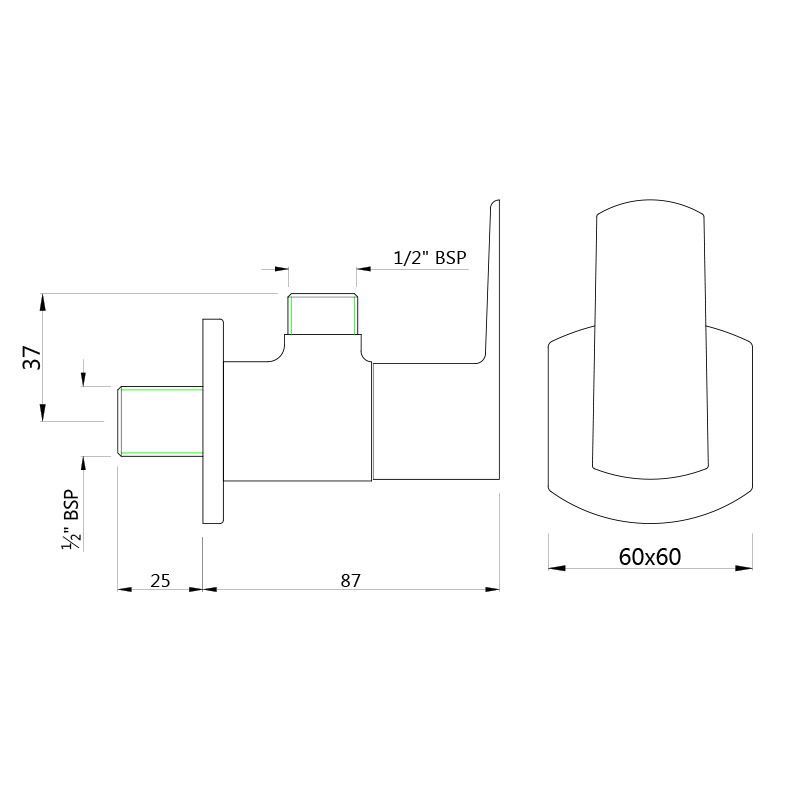

Angular Stop Cock with Wall Flange
Flow Rate
32.70 LPM @ 3 bar
Recommended Water Pressure
0.5 Bar – 5 Bar
Brass Specification in Percentage
- Brass Ingots as per IS:1264-1997: Cu (58.0-63.0), Sn (0.0-1.0), Pb (0.5-2.5), Ni (0.0-1.0), Al (0.2-0.8), Mn (0.0-0.5), Total Impurity (0.0-2.0), Zn (Remainder)
- Brass Rod as per IS:319-1989: Cu (56.0-59.0), Pb (2.0-3.5), Fe (0.0-0.35), Total Impurity (0.0-0.7), Zn (Remainder)
- Brass Sheets as per IS:410-1977: Cu (61.5-64.5), Pb (0.0-0.3), Fe (0.0-0.075), Total Impurity (0.0-0.6), Zn (Remainder)
Cartridge Specification
- Fittings: Components have WRAS Approved for food grade conformity with Brass Housing and Spindle
- Life Cycle EN 200: 200,000 cycles (Standard) – 5.0 LAC Cycles as per EN 200*
- Water Tightness: 16 bar (Pass)
- Pressure Resistance: 25 bar (Pass)
Finish
- Plating: Nickel-10.0 micron Chromium-0.3 micron
- Salt Spray (500 hrs + Validated)
- Adhesion (Pass)
Available Colour Finishing
Antique Bronze (ABR), Antique Copper (ACR), Black Chrome (BCH), Blush Gold Bright PVD (BGP),
Black Matt (BLM), Gold Bright PVD (GBP), Gold Dust (GDS), Auric Gold (GLD),
Gold Matt PVD (GMP), Graphite (GRF), Stainless Steel (SSF) & White Matt (WHM)
* As per in-house testing done on automatic life cycle testing machine made by Giussani, Italy
DISCLAIMER: Our every effort has been made to ensure factual accuracy, the information presented
is subject to changes due to requirements in different sites, markets and/or countries.
10% variation in flow rate may be possible. Jaquar reserves the right to make the necessary
amendments at any time without prior notice.
