Description
Product Code
OPP-CHR-15041PM
Description

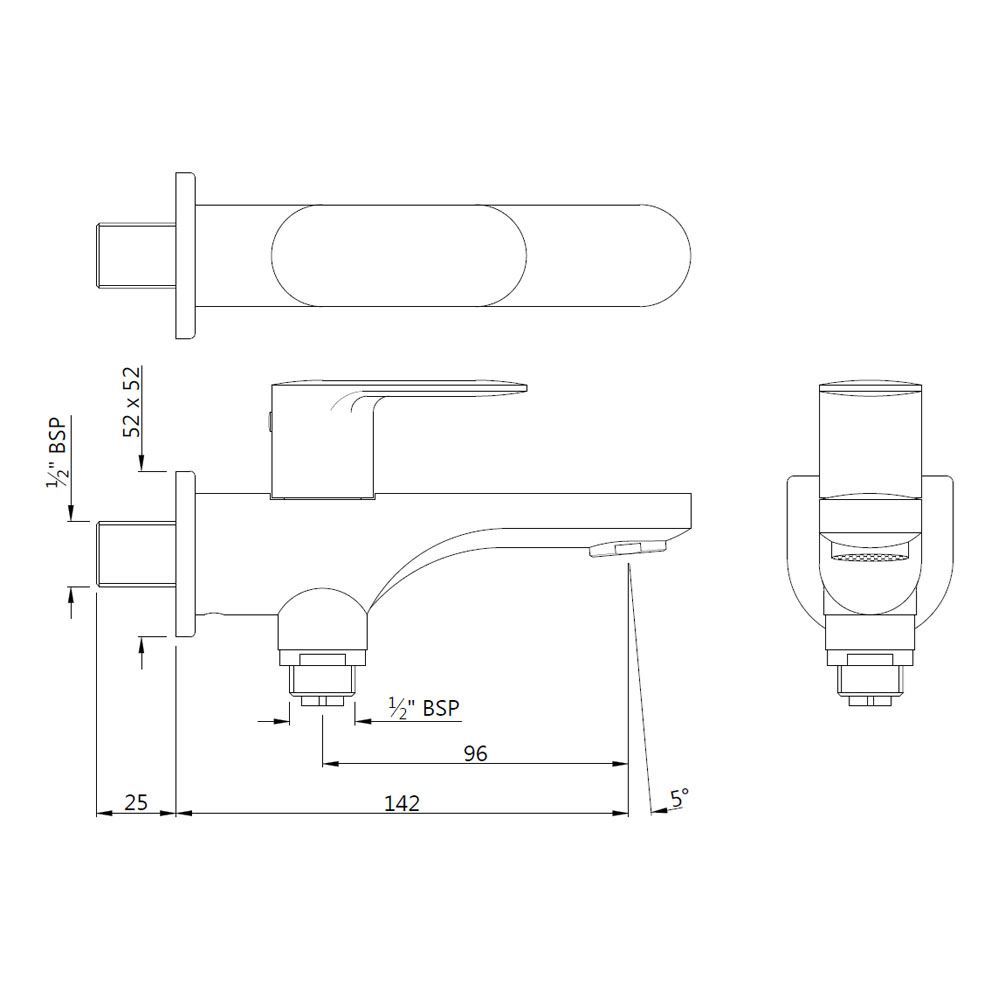

2 Way Bib Cock with Wall Flange
Flow Rate: 16.89 LPM @ 3 bar
Recommended Water Pressure: 0.5 Bar – 5 Bar
Flow Regulator: By using flow regulators (Product should be ordered with suffix as G-2.5 LPM, GA-6.0 LPM, GB-8.0 LPM, GD-3.8 LPM & GE-1.3 LPM @ 3.0 Bar pressure) one can regulate the flow rate.
Material Composition
Brass Ingots as per IS:1264-1997
Cu: 58.0 – 63.0,
Sn: 0.0 – 1.0,
Pb: 0.5 – 2.5,
Ni: 0.0 – 1.0,
Al: 0.2 – 0.8,
Mn: 0.0 – 0.5,
Total Impurity: 0.0 – 2.0,
Zn: Remainder
Brass Rod as per IS:319-1989
Cu: 56.0 – 59.0,
Pb: 2.0 – 3.5,
Fe: 0.0 – 0.35,
Total Impurity: 0.0 – 0.7,
Zn: Remainder
Brass Sheets as per IS:410-1977
Cu: 61.5 – 64.5,
Pb: 0.0 – 0.3,
Fe: 0.0 – 0.075,
Total Impurity: 0.0 – 0.6,
Zn: Remainder
Cartridge Specification
Fittings: Components have WRAS Approved for food grade conformity with Brass Housing and Spindle
Life Cycle: EN 200: 200,000 cycles (Standard) – 5.0 LAC Cycles as per EN 200*
Water Tightness: 16 bar (Pass)
Pressure Resistance: 25 bar (Pass)
Finish
Plating: Nickel – 10.0 micron, Chromium – 0.3 micron
Salt Spray: 500 hrs + (Validated)
Adhesion: Pass
Aerator Size: WRAS, ACS Approved (M20X1)
Available Colour Finishing
Antique Bronze (ABR), Antique Copper (ACR), Black Chrome (BCH), Blush Gold Bright PVD (BGP), Black Matt (BLM), Gold Bright PVD (GBP), Gold Dust (GDS), Auric Gold (GLD), Gold Matt PVD (GMP), Graphite (GRF), Stainless Steel (SSF) & White Matt (WHM)
Disclaimer
Our every effort has been made to ensure factual accuracy; the information presented is subject to changes due to requirements in different sites, markets and/or countries. 10% variation in flow rate may be possible. Jaquar reserves the right to make the necessary amendments at any time without prior notice.
* As per in-house testing done on automatic life cycle testing machine made by Giussani, Italy
